General feature:

• Maximum storage capacity: 193.5 kWh
• Battery configuration: 12S1P
• Supported charge and discharge rate: up to 0.5 C
• Maximum discharge power: up to 100 kW
• Maximum charging power: up to 100 kW
• Cell chemistry: Lithium iron phosphate (LFP)
• Number of battery packs: 12
• Automatic calibration of the state of charge (SOC)

Safety and reliability:

• Four-stage active safety: Predictive AI fault detection
• Intelligent algorithms (Smart PCS): Improve the adaptability and stability of the microgrid
• Proactive alarms and active safety mechanisms: Intelligent diagnosis of internal short circuits, monitoring of fire sources, live insulation monitoring
• Emergency measures: Rapid system shutdown, active gas release and rapid fire suppression

Efficiency and operation:

• Max. efficiency: > 98.5%
• Supports operation in both grid and stand-alone mode
• Smart Battery Management Unit (BMU): Precise diagnostics and proactive warnings
• Smart PCS LUNA2000-100KTL-M1: Efficient charging and discharging with a capacity of 100 kW
• Smart Rack Controller: Voltage adjustment and extended battery life
• Communication and Management Unit (CMU): Data collection, protocol conversion, centralised monitoring and maintenance

Advantages of the Huawei Smart String ESS LUNA2000-200KWH-2H1:

• High capacity and flexibility: up to 193.5 kWh storage capacity, supports various charging and discharging rates.
• Safety and reliability: Intelligent diagnostics, proactive alarms, comprehensive safety mechanisms, rapid fire suppression.
• Energy efficiency: High efficiency of over 98.5%, automatic state of charge calibration.
• Intelligent control: BMU for precise diagnostics, Smart PCS for efficient management, CMU for centralised monitoring.
• Easy integration: Compatible with various PV inverters and energy management systems, plug & play design.
• Space-saving: Compact footprint of 3.1 m², less than a third of a standard parking space.
• Robust design: IP55 protection class, suitable for extreme environmental conditions, operating range from -30°C to 55°C.

• Datasheet
• Quick Guide
• User Manual

Further documents can be found in our

• DC rated voltage: 1,250 V
• DC max voltage: 1,500 V
• Nominal energy capacity: 2,032 kWh
• Container configuration (W x H x D): 6,058 x 2,896 x 2,438 mm
• Container weight: ≤ 30 t
• Operation temperature range: -30°C ~ 40°C
• Storage temperature range: -40°C ~ 60°C
• Relative humidity: 0 ~ 100% (Non-condensing)
• Max. operating altitude: 4,000 m
• Cooling method: smart air cooling
• Fire suppression agent: FM-200 / Novec 1230
• Communication protocol: Ethernet / SFP, Modbus TCP / IEC 104
• Protection Degree: IP55

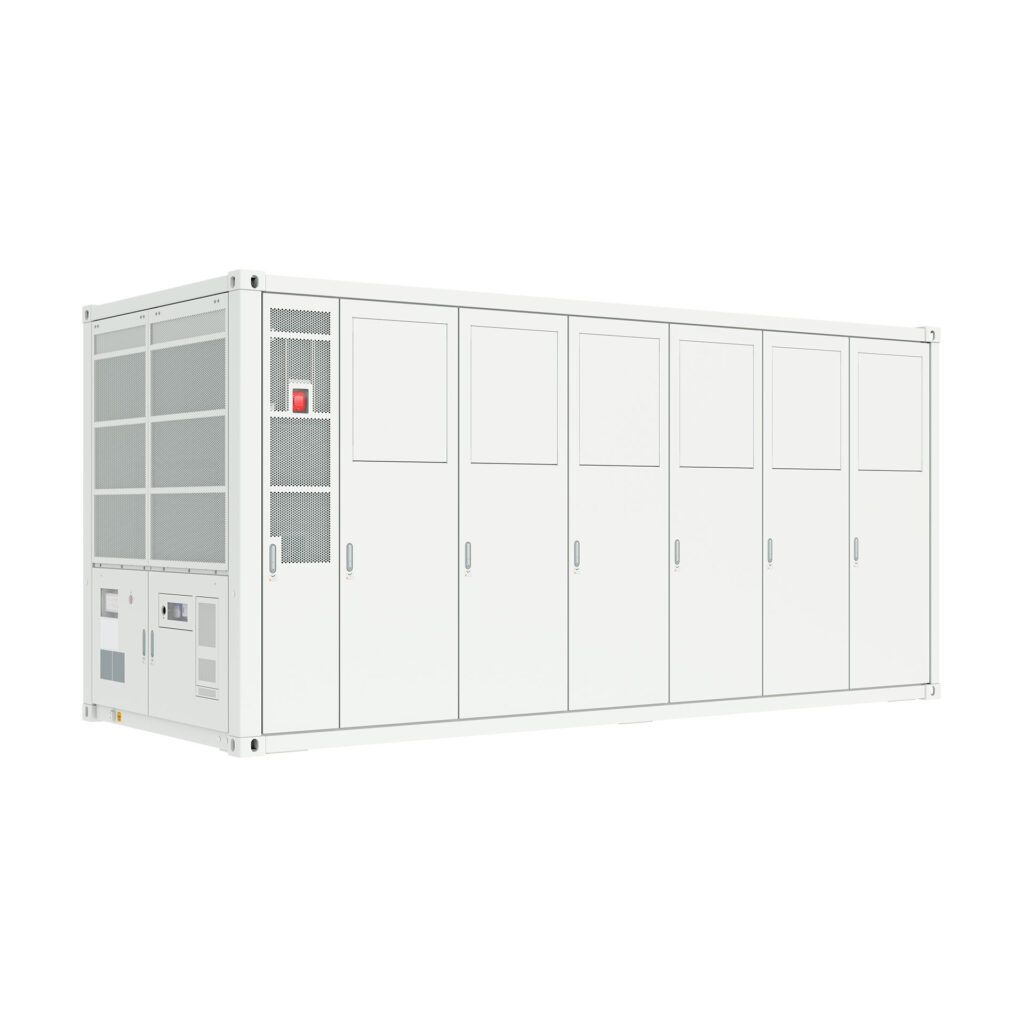

Advantages of the LUNA2000-2.0MWH Smart String ESS:

• More energy: Increases discharge energy by 15%, optimisation at pack and rack level, optimum air cooling
• Safe & Reliable: Modular design, AI for predictive maintenance, delivery in standardised 20″ container
• Optimal investment: System and PCS availability ＞ 99.9%, initial configuration reduced by 30%, support for battery expansion
• Simple O&M: Save ~235k€/100 MWh/year*, no periodic balancing required, no need for expert maintenance
• High flexibility: Adaptable to different energy requirements
• Robust safety: Advanced safety features ensure reliable use
• Easy installation: Modular design enables quick and uncomplicated installations

• Datasheet
• Quick Guide
• User Manual
